SA3
Price on request
A 3-way, horn-loaded, bass-reflex loudspeaker. The SA3 delivers a highly efficient mid-bass punch for larger spaces.
Added to your basket. View basket ()
Every system is built to order, so prices are on request. Add what you’re interested in, then request a price from your basket.
- Hand-built cabinet
- Professional-grade drivers
- Horn-loaded efficiency
- Built to order
Designed & hand-built in the UK
Complete your system
Sub 3
Matched to the SA3
Inside the SA3

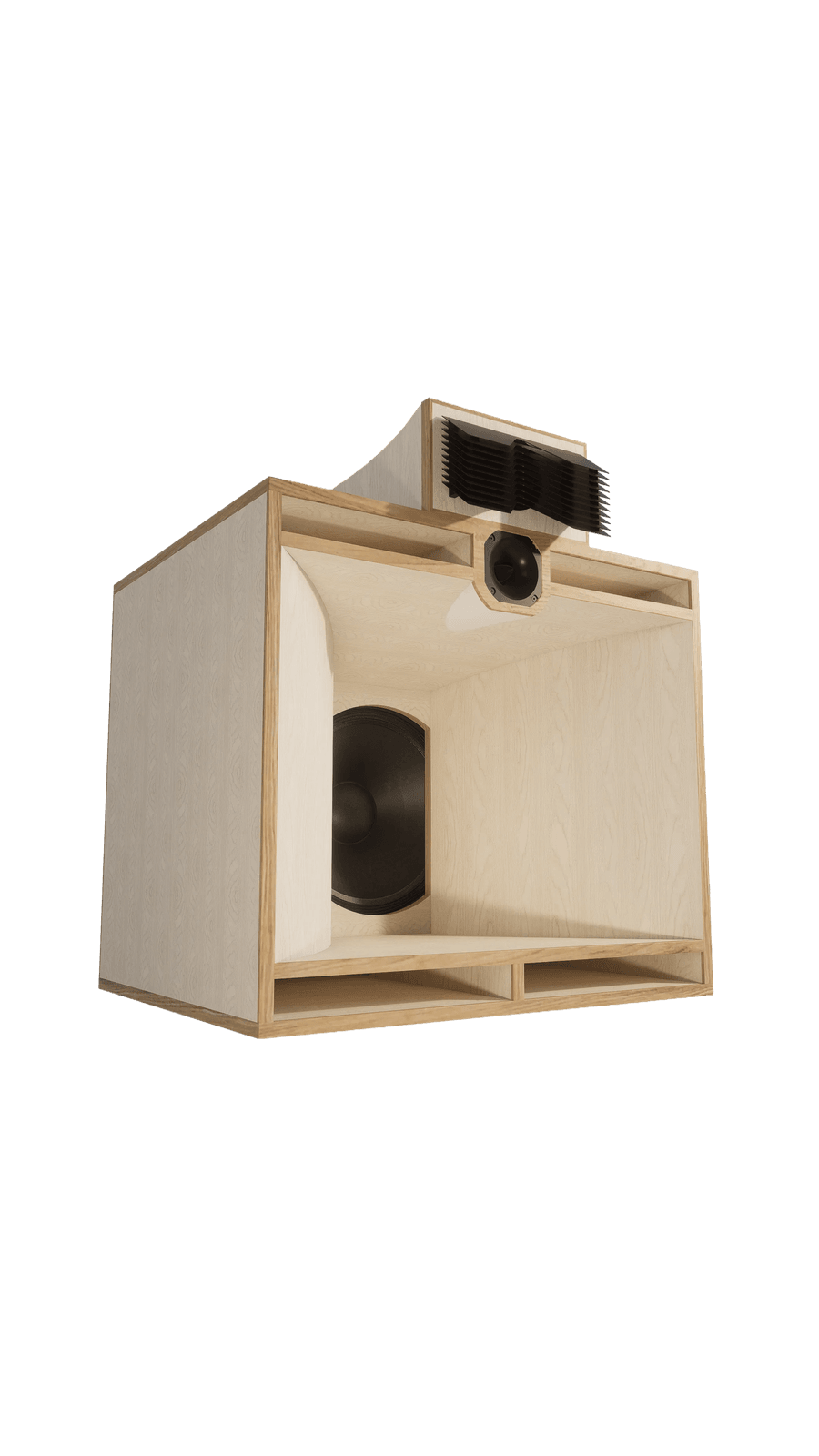

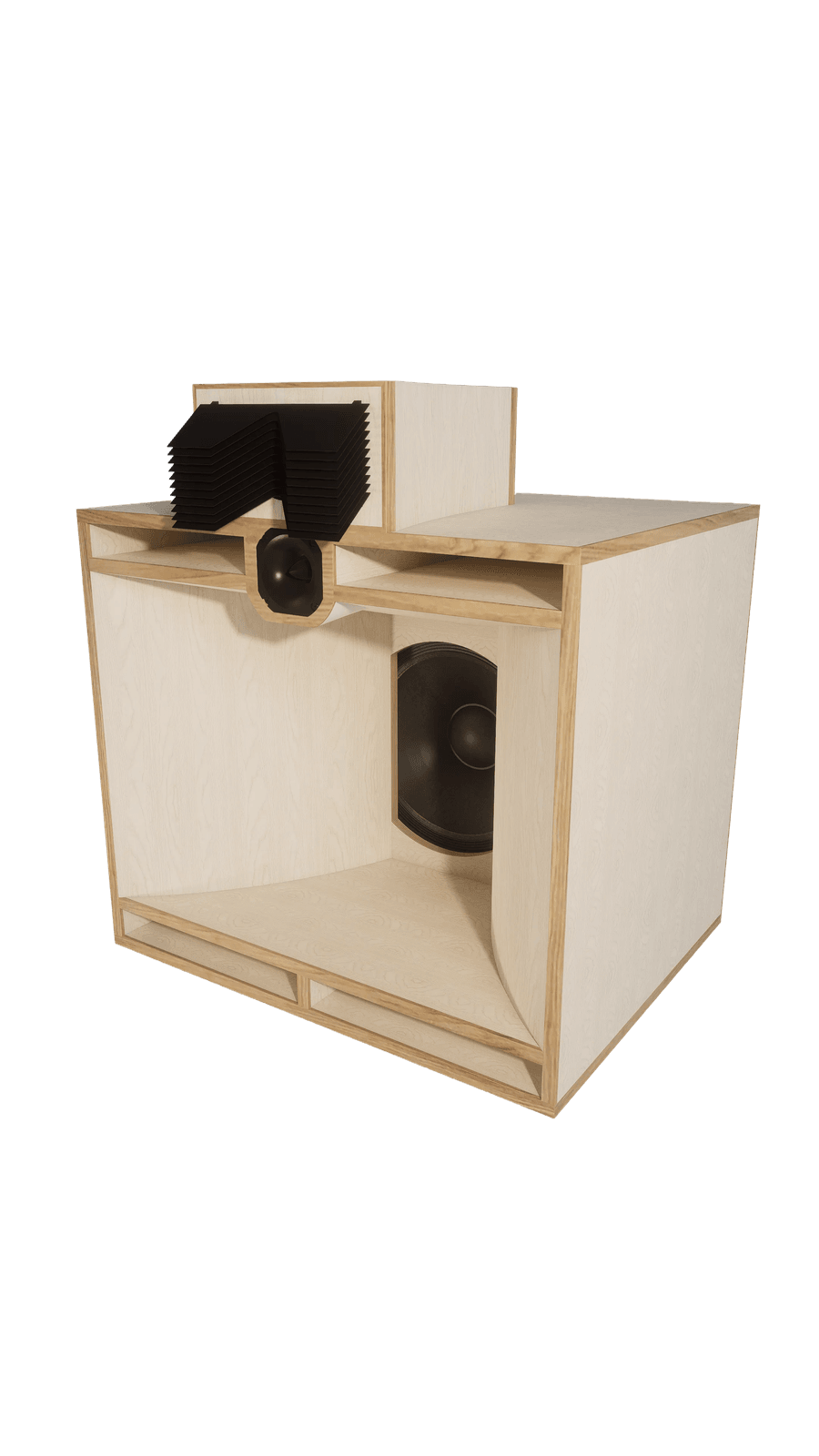

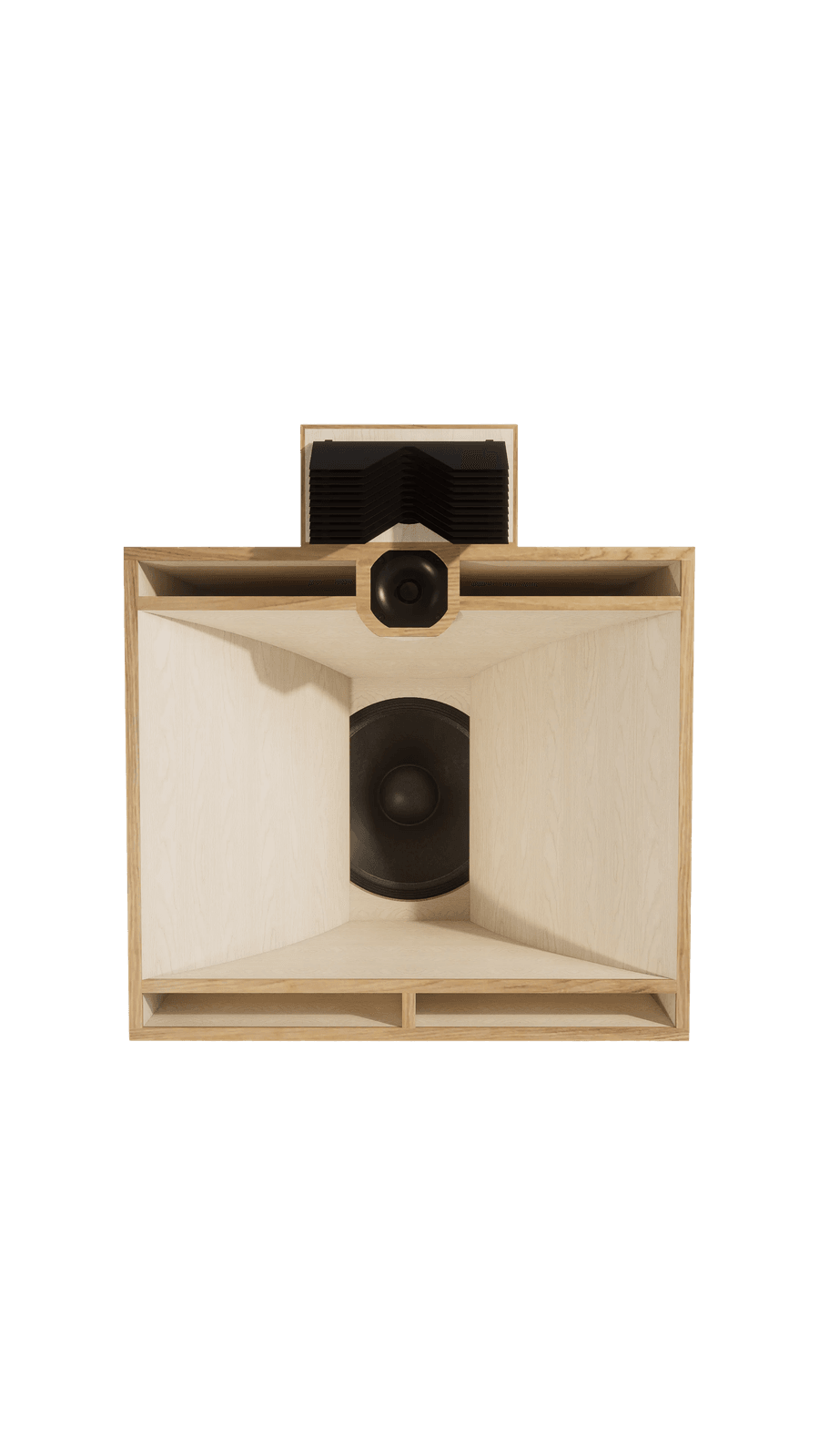

The SA3 is a 3-way floor-standing loudspeaker that pairs a 15in. bass-reflex woofer with a horn-loaded midrange and acoustic lens, bringing the scale of a sound system into larger spaces.
A horn and lens for the midrange
The midrange comes from a 1in. compression driver on a horn, with an acoustic lens in front to spread its sound evenly across the room. It covers 1.1kHz to 7kHz, where voices and most instruments sit.
15in. of bass-reflex weight
A 15in. woofer in a bass-reflex cabinet handles everything below 1.1kHz, reaching down to 50Hz for the mid-bass punch and scale of a full sound system.
Three ways, split twice
If selected, a passive 3-way crossover splits the signal at 1.1kHz and 7kHz, handing the top octaves to a dedicated compression tweeter. Each driver only covers the range it does best.
Specifications
- Type
- 3-way floor-standing
- Enclosure
- Birch ply, bass-reflex
- Tweeter
- 1in. compression driver, 7kHz – 20kHz
- Midrange
- 1in. compression driver on a horn and acoustic lens, 1.1kHz – 7kHz
- Woofer
- 15in., 50Hz – 1.1kHz
- Crossover
- Passive 3-way, 1.1kHz and 7kHz, if selected
- Frequency response
- 50Hz – 20kHz
- Dimensions (H×W×D)
- 762 × 762 × 660mm
- Finish
- Birch or ash, lipped or unlipped
Proudly designed and hand-built in the UK

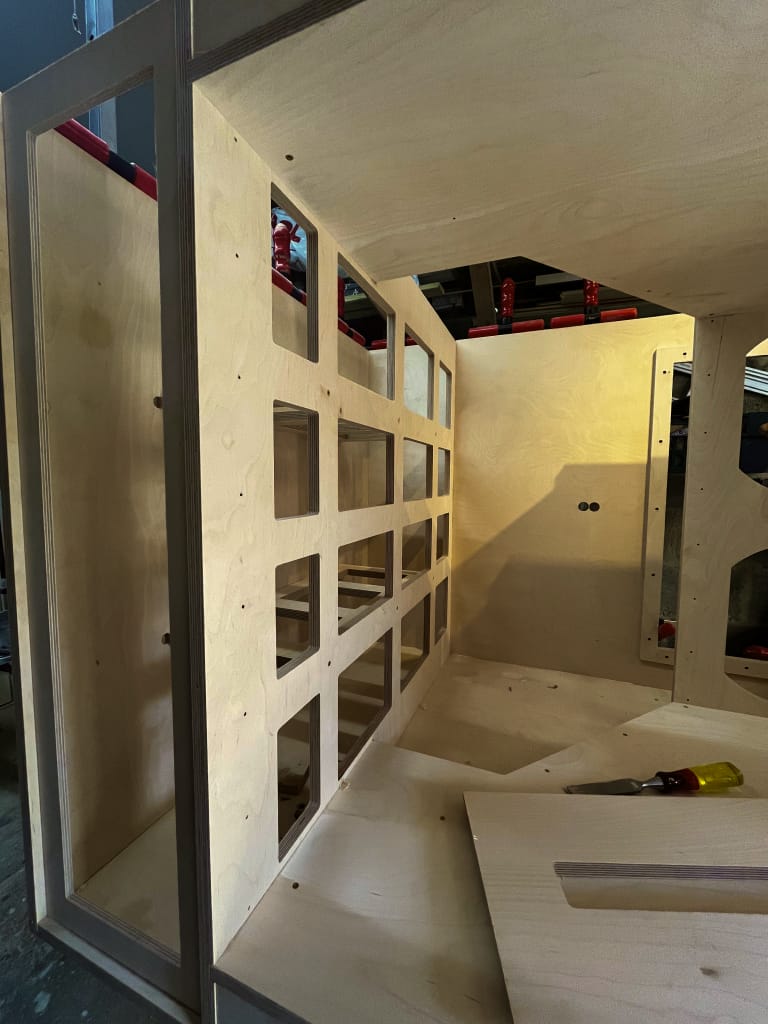

Every SA3 is cut, joined, finished and packed by hand in the UK. Each pair is built to order and checked before it leaves the workshop.
