SA4
Price on request
A 3-way, floor-standing loudspeaker with a horn-loaded midrange and acoustic lens.
Added to your basket. View basket ()
Every system is built to order, so prices are on request. Add what you’re interested in, then request a price from your basket.
- Hand-built cabinet
- Professional-grade drivers
- Full-range clarity
- Built to order
Designed & hand-built in the UK
Complete your system
Sub 4
Matched to the SA4
Inside the SA4

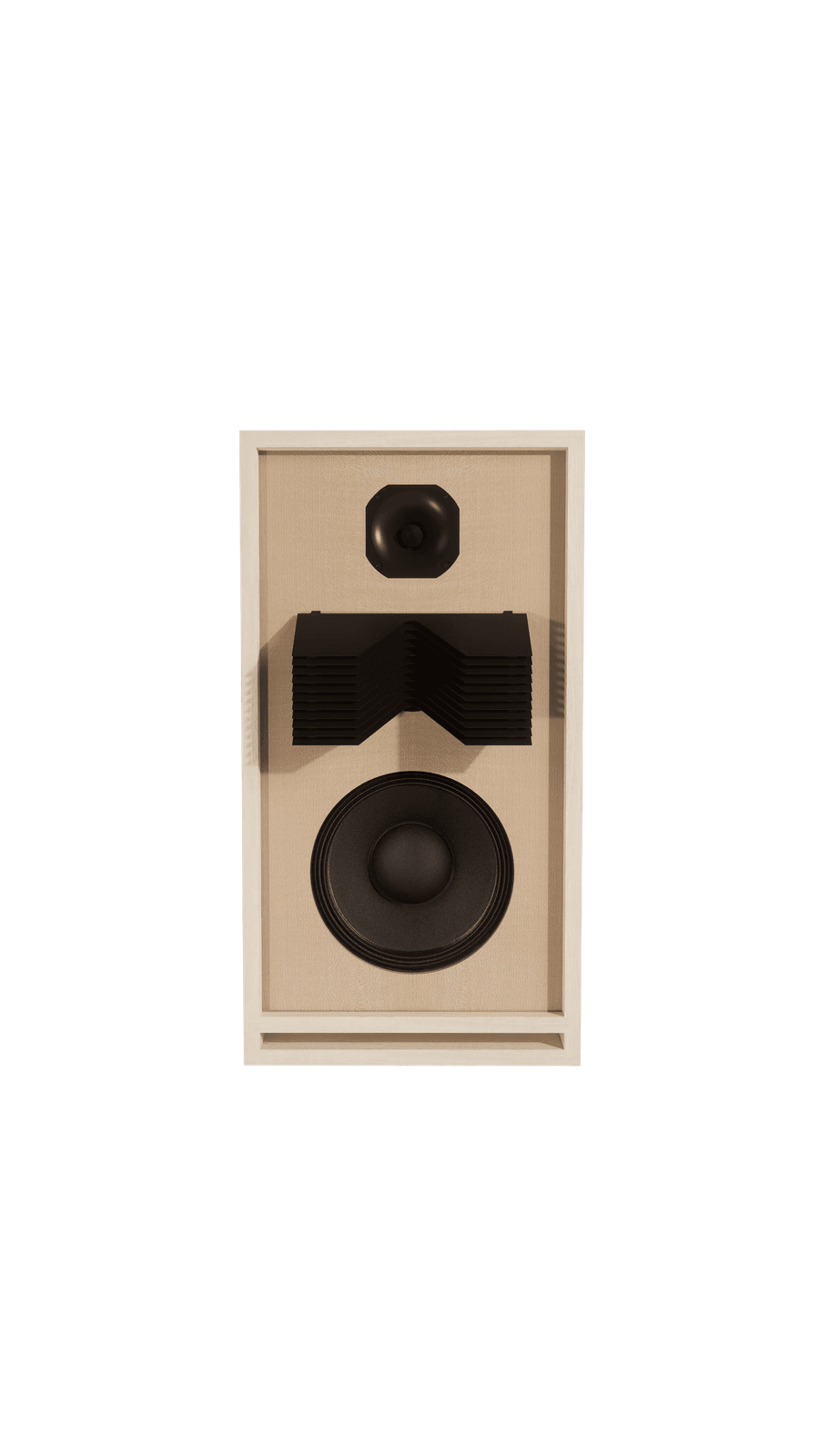

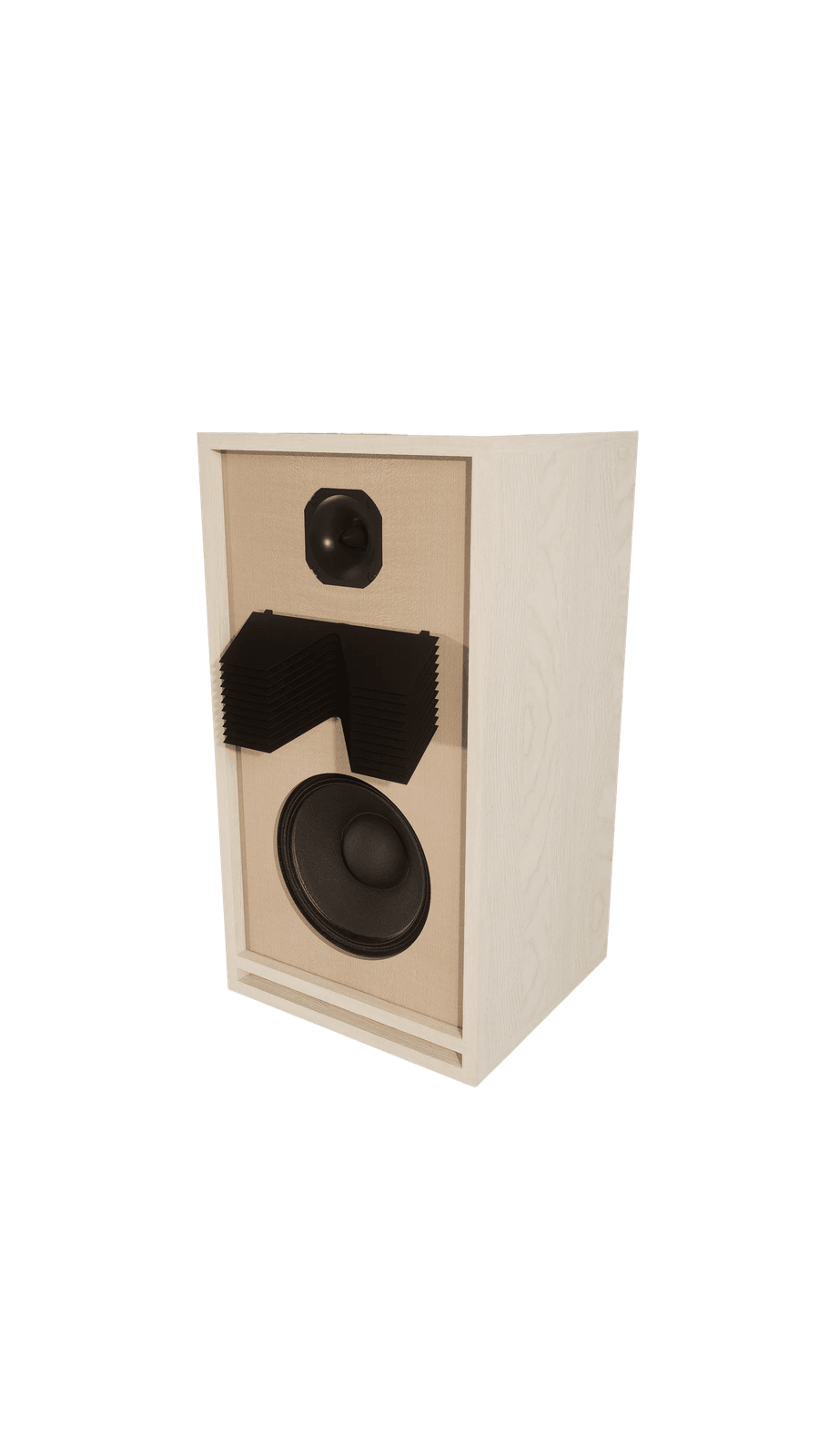

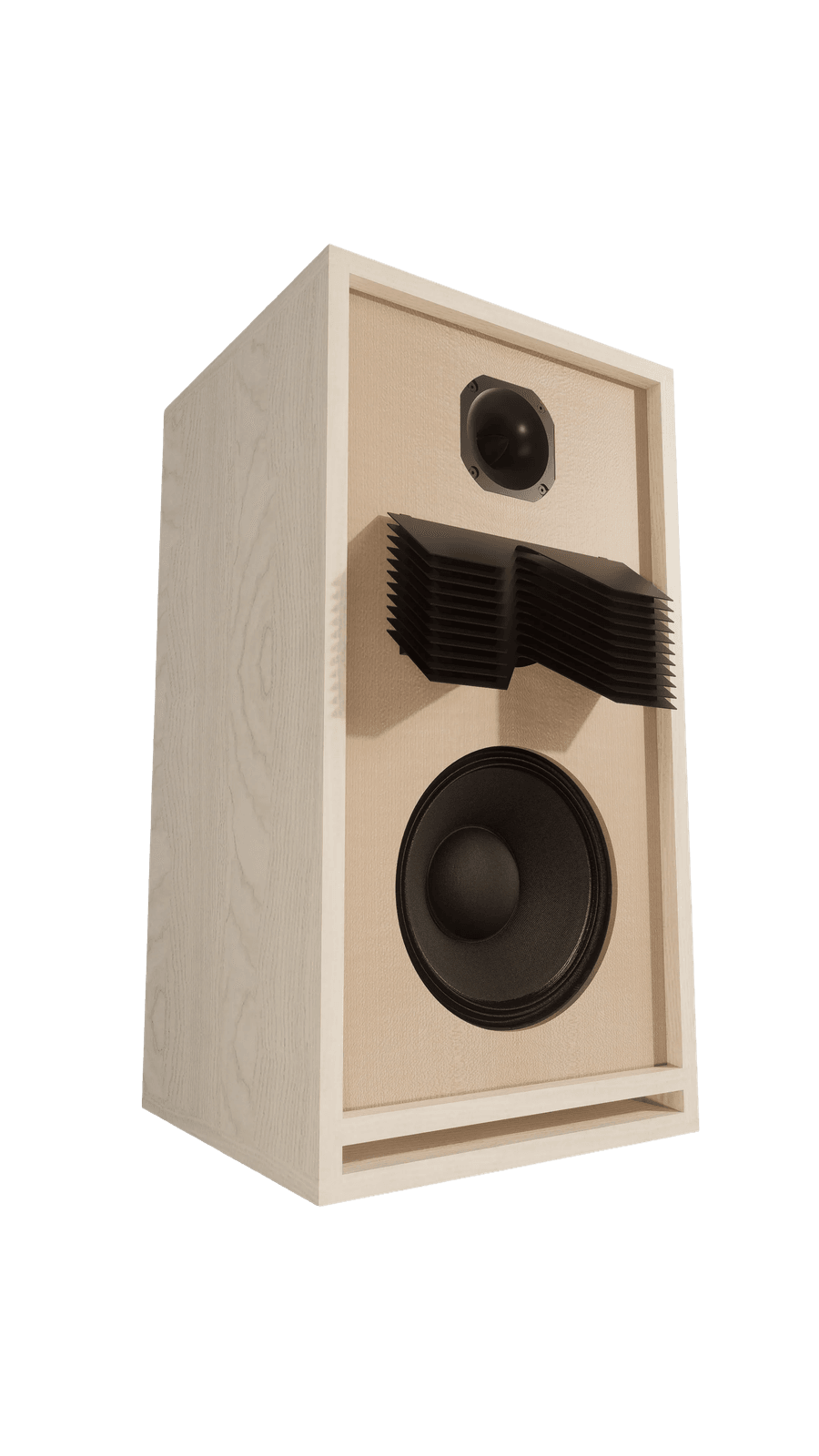

The SA4 is a 3-way floor-standing loudspeaker built around a horn-loaded midrange with an acoustic lens, bringing the character of a professional system home.
A horn and lens for the midrange
The midrange comes from a 1in. compression driver on a horn, with an acoustic lens in front to spread its sound evenly across the room. It covers 1.1kHz to 7kHz, where voices and most instruments sit.
A 10in. woofer for real weight
Below 1.1kHz a 10in. woofer takes over, reaching down to 50Hz for bass with genuine scale and weight.
Three ways, split twice
If selected, a passive 3-way crossover splits the signal at 1.1kHz and 7kHz, handing the top octaves to a dedicated compression tweeter. Each driver only covers the range it does best.
Specifications
- Type
- 3-way floor-standing
- Enclosure
- Birch ply
- Tweeter
- 1in. compression driver, 7kHz – 20kHz
- Midrange
- 1in. compression driver on a horn and acoustic lens, 1.1kHz – 7kHz
- Woofer
- 10in., 50Hz – 1.1kHz
- Crossover
- Passive 3-way, 1.1kHz and 7kHz, if selected
- Frequency response
- 50Hz – 20kHz
- Dimensions (H×W×D)
- 700 × 354 × 375mm
- Finish
- Birch or ash, lipped or unlipped
Proudly designed and hand-built in the UK
Every SA4 is cut, joined, finished and packed by hand in the UK. Each pair is built to order and checked before it leaves the workshop.
