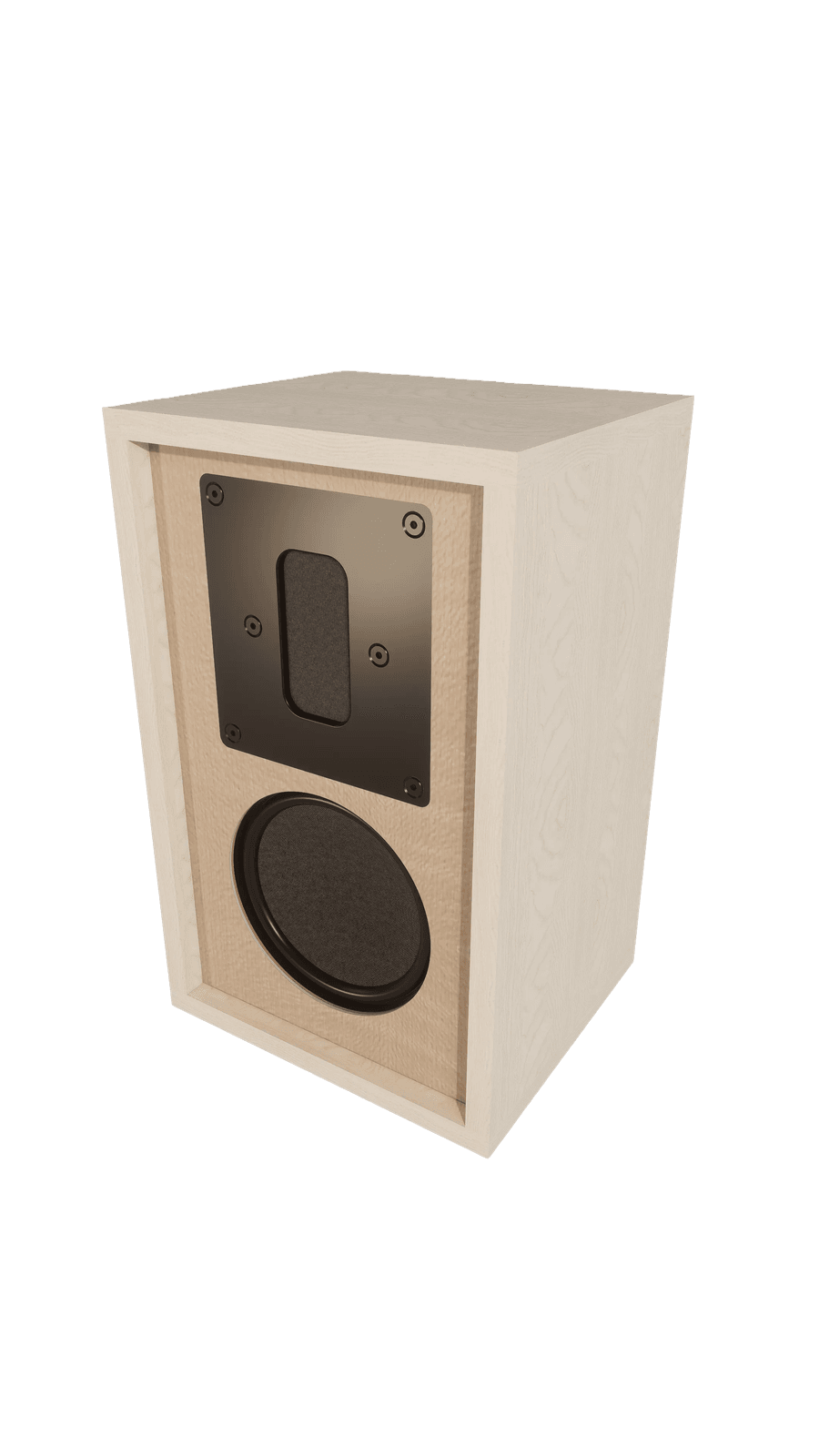

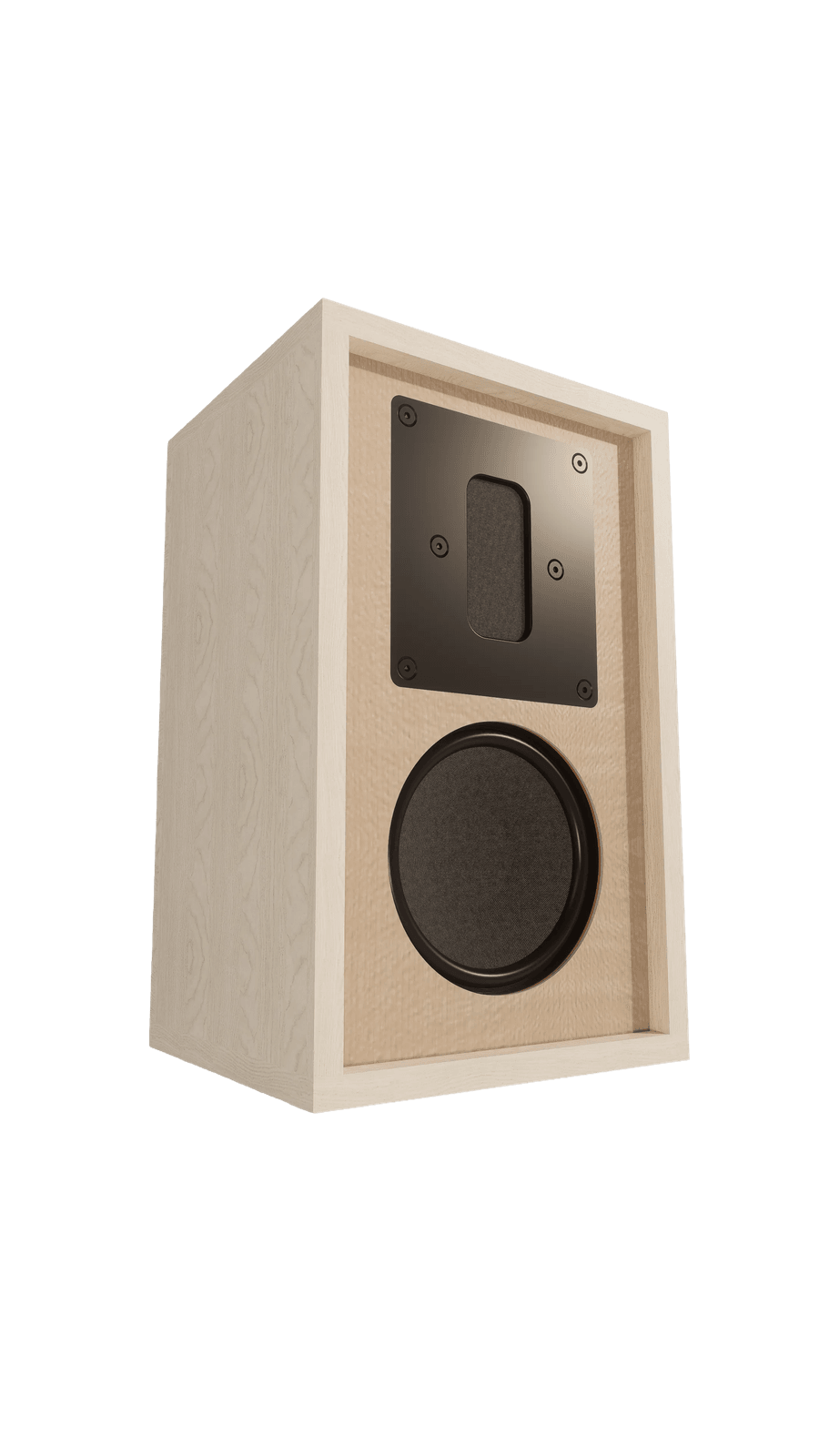

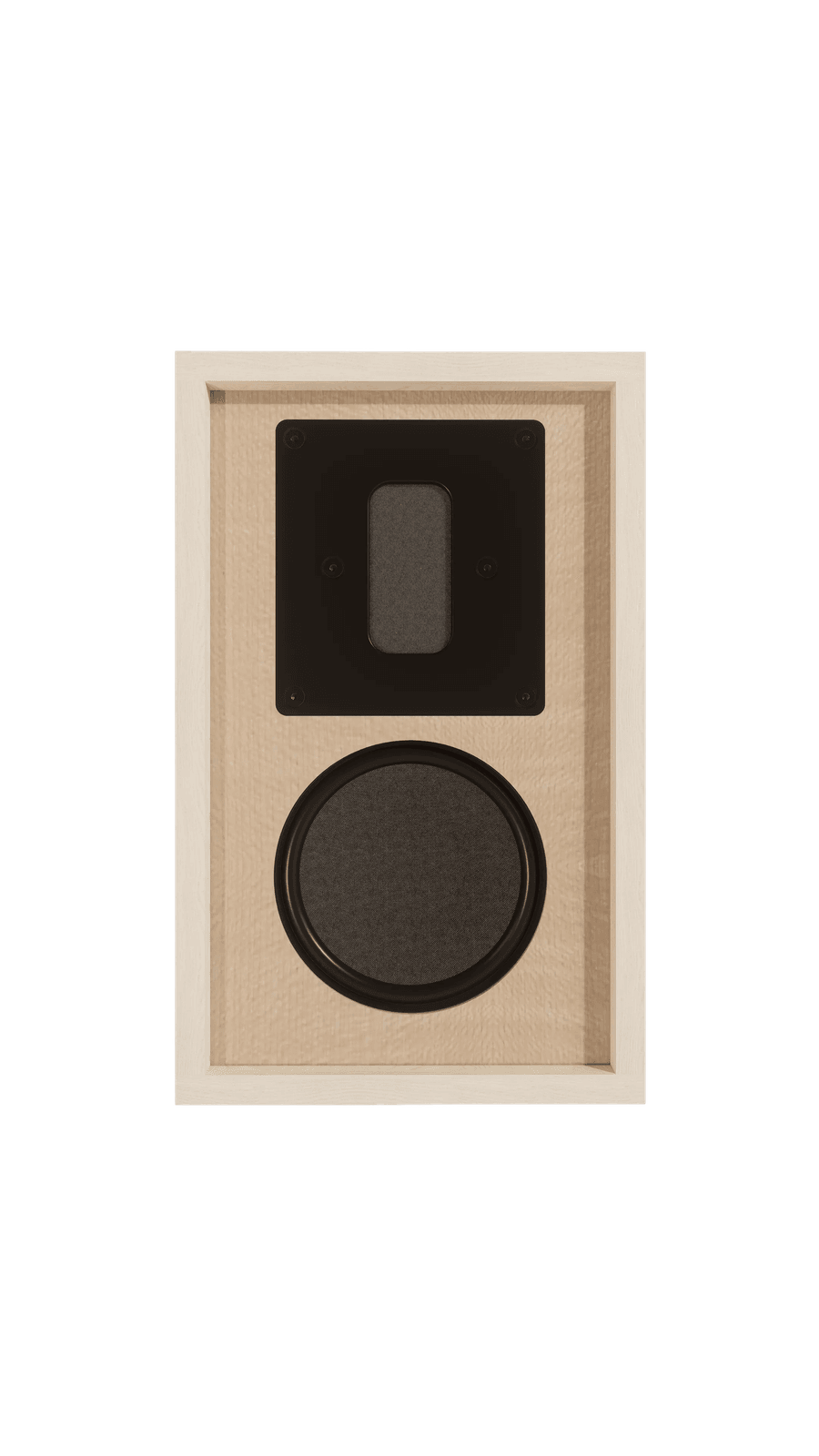

SA5
Price on request
A 2-way, compact bookshelf loudspeaker, inspired by classic BBC monitors.
Added to your basket. View basket ()
Every system is built to order, so prices are on request. Add what you’re interested in, then request a price from your basket.
- Hand-built cabinet
- Professional-grade drivers
- Near-field clarity
- Built to order
Designed & hand-built in the UK
Complete your system
Sub 5
Matched to the SA5
Inside the SA5
Inspired by the LS3/5A, the SA5 utilises the same midbass driver as the original with a modern ribbon tweeter and updated cabinet construction.
A small box, built properly
Birch or ash ply, hand-joined, enclosing just 9 litres. In a box this size every panel matters, so the cabinet is lined with needled felt and built to keep the sound coming from the drivers, not the walls.
Professional-spec components
The SA5 uses a ribbon tweeter, the same one hung in the Sunflower Sound System's tweeter arrays. It takes everything from 1.8kHz up, with the speed and air that a small speaker for close listening needs.
The original driver for a classic sound
A 5in. B110 midbass driver covers everything from 55Hz to 1.8kHz, carrying vocals and instruments on its own. That's why the SA5 sounds coherent close up.
A simple, steep crossover
If selected, a passive 2-way crossover splits the signal at 1.8kHz with an 18dB/oct slope. That keeps each driver in the range where it works best, with a steep roll-off for minimal unwanted frequencies.
Specifications
- Type
- 2-way bookshelf
- Enclosure
- Birch ply, 9 litres
- Tweeter
- Ribbon, 1.8kHz – 20kHz
- Woofer
- 5in. B110, 55Hz – 1.8kHz
- Crossover
- Passive, 1.8kHz at 18dB/oct, if selected
- Frequency response
- 55Hz – 20kHz
- Dimensions (H×W×D)
- 310 × 190 × 160mm
- Finish
- Birch or ash, lipped or unlipped
Proudly designed and hand-built in the UK
Every SA5 is cut, joined, finished and packed by hand in the UK. Each pair is built to order and checked before it leaves the workshop.
